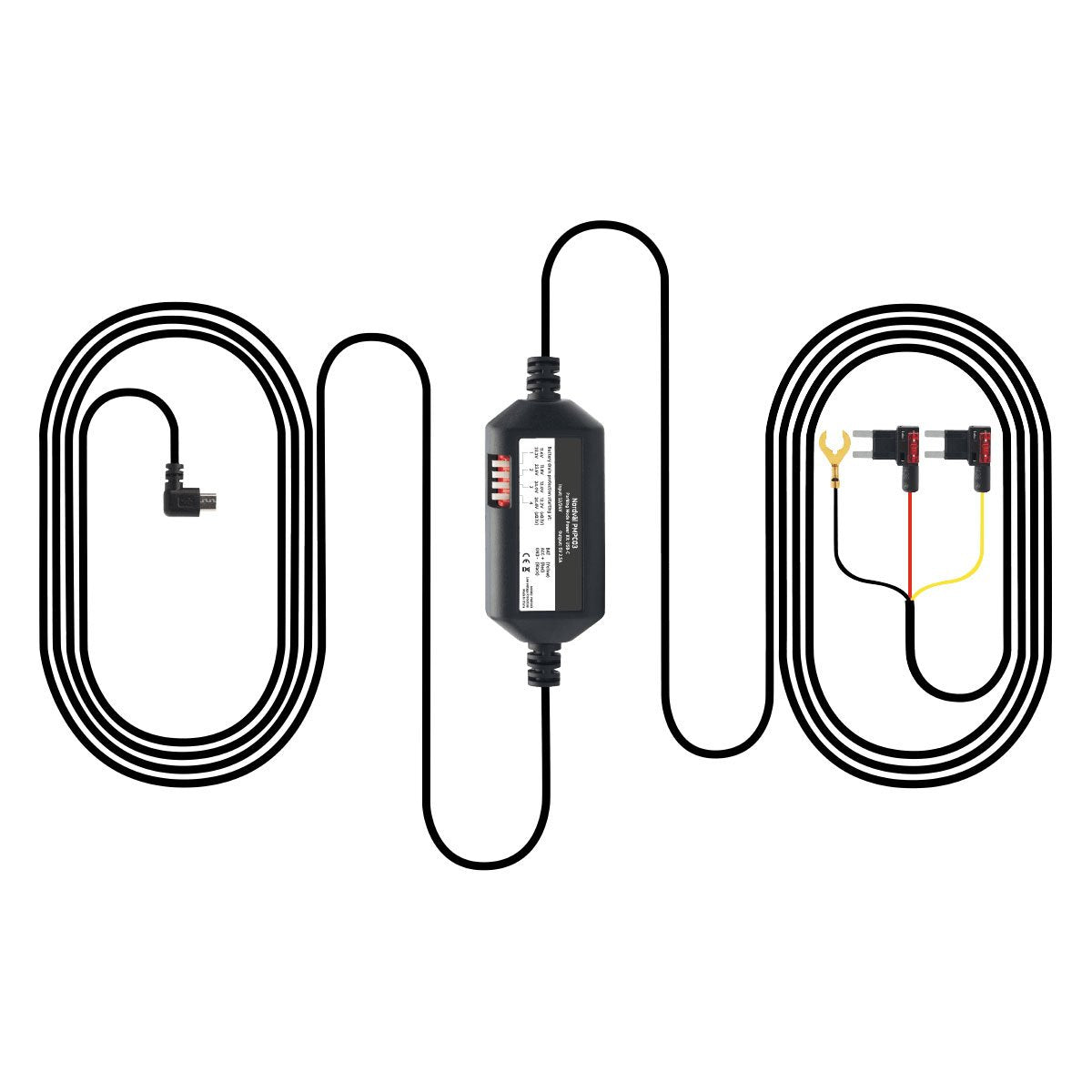

Nordväl PMPC03 USB-C Hardwire kit for using your Nordväl DC202 in parking mode. This handy hardwire kit is specially designed to connect the dashcam in a professional way and to be able to use it in parking mode.
3-wire
This Nordväl PMPC03 power supply is a 3-wire ‘hardwire kit’ that is connected at three points, preferably at the car's fuse box. The yellow cable is connected to a fuse which provides continuous current (also when the ignition is switched off), the red to a switched fuse (which only provides current when the ignition is switched on) and the black to earth. In this way, the power supply sends a signal to the dashcam when the ignition is turned on and off so that the dashcam will automatically switch to parking mode.
Battery protection
The power supply has an adjustable cut-off voltage (11.6V to 12.2V) where power is cut if the battery voltage gets too low. This way, you don't have to worry about ending up with a dead battery.
Installation
Check this page for detailed instructions on how to install this hardwire kit.
Specifications
Length: 3.0m
Plug: USB-C
Input: 12V/24V
Output: 5V 3.0A
Battery protection: 11.6V/23.2V
Type: 3-wire
