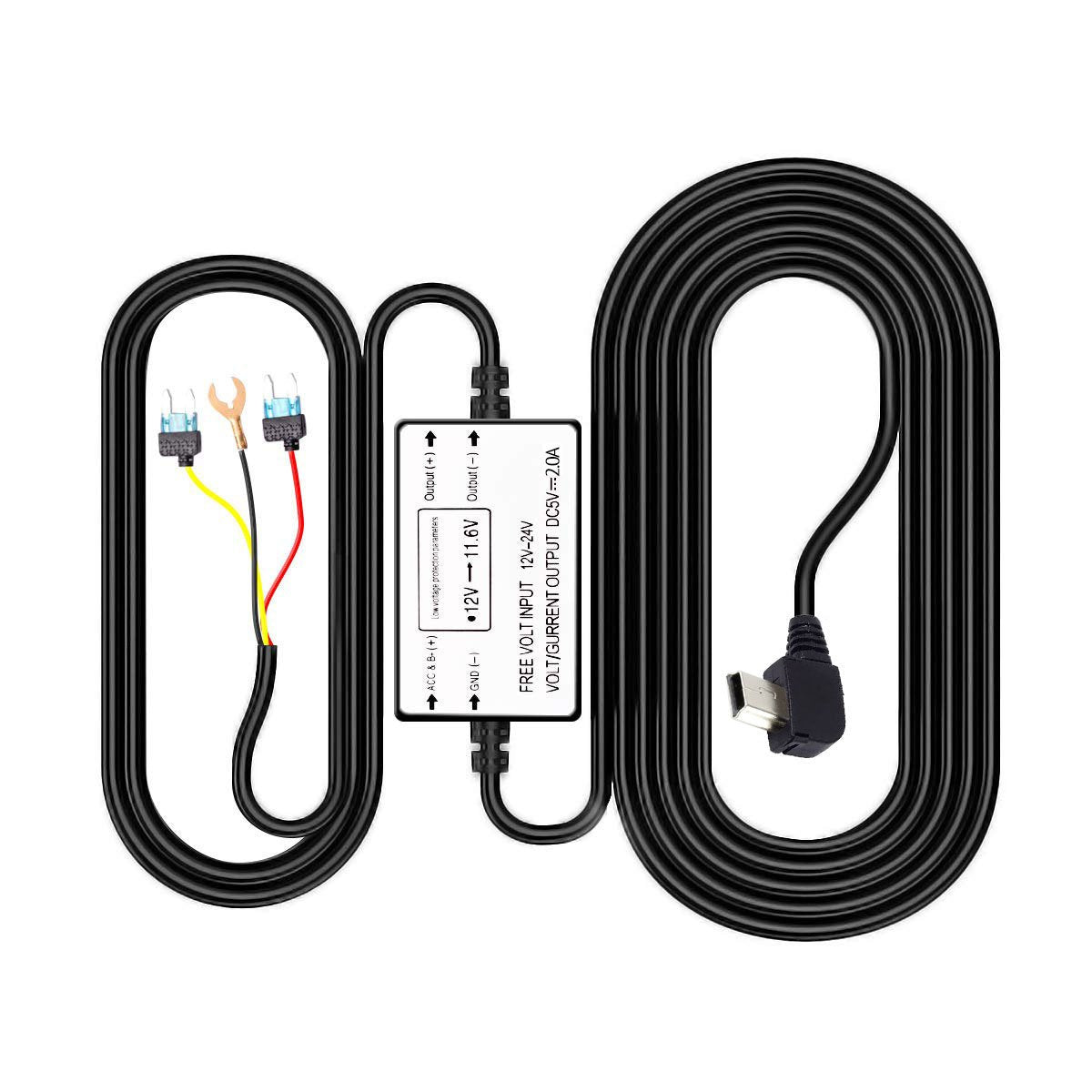

AZDome Mini USB Continuous power cable to permanently power your AZDome dashcam and use parking mode. Suitable for all AZDome dashcams with Mini USB plug.
Note: This cable is only suitable for AZDome dashcams with Mini USB connector such as M63 Pro and GS63H (except Pro version), parking mode will not work with other dashcams.
3-wire
This AZDome power supply is a 3-wire ‘hardwire kit’ that connects to three points, preferably at the car's fuse box. The yellow cable is connected to a fuse that supplies continuous current (also when the ignition is switched off), the red to a switched fuse (which supplies current only when the ignition is switched on) and the black to ground. In this way, the power supply sends a signal to the dashcam when the ignition is turned on and off so that the dashcam will automatically switch to parking mode.
Battery protection
The power supply has a built-in protection device that cuts the power at a voltage of 11.6V/23.2V or lower. That way, the car's battery will not be overloaded and the dashcam will switch off when the voltage gets too low. It is suitable for 12V and 24V vehicles.
Installation
See detailed instructions on how to install this hardwire kit on this page.
Specifications
Length: 3.0m
Plug: Mini USB
Input: 12V/24V
Output: 4.7V 2.5A
Battery protection: 11.6V
Type: 3-wire
