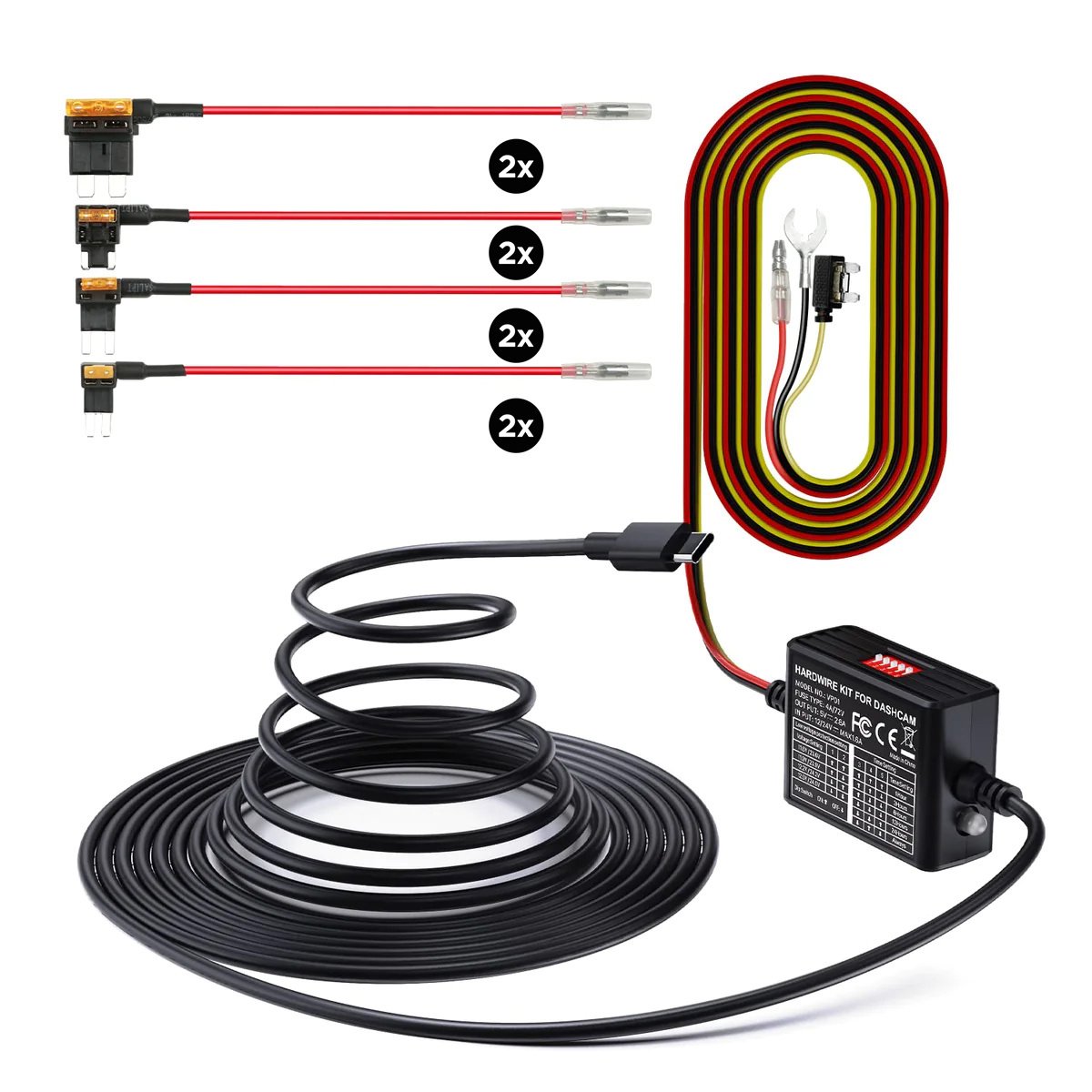

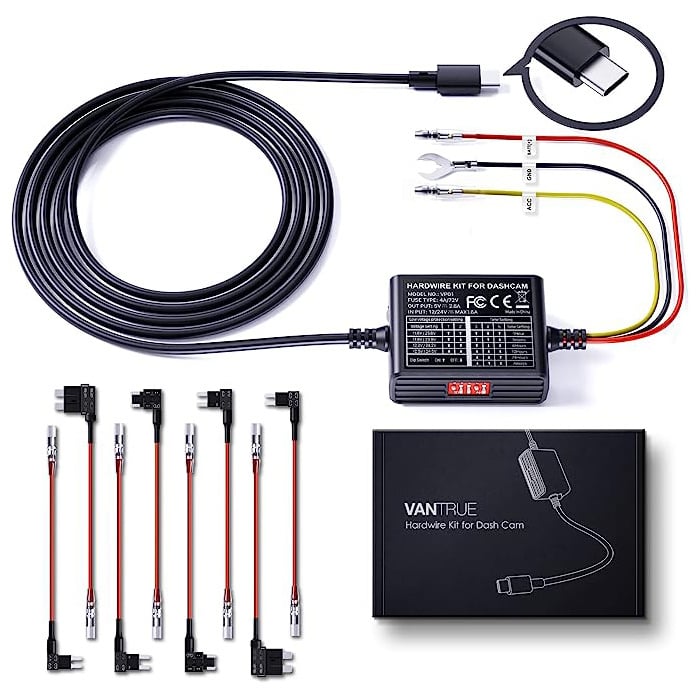

This Vantrue VP01 USB-C 3-wire permanent power supply is an intelligent hardwire kit for your Vantrue dashcam. This permanent power cable connects to your car's fuse box after which the Vantrue's automatic parking mode can be used.
Suitable for Vantrue E1, E2, E3, S2, N2S, X4S, N4, N4 Pro and N5 dashcams.
Variable battery protection
The power supply has a built-in module with switches that ensure the car's battery does not run down from filming with the dashcam. The switch can be set to 11.8V/23.6V, 12.0V/24.0V, 12.2V/24.4V or 12.4V/24.8V. Power is cut off when the battery voltage falls below the set threshold. You can also set a timer on the power supply to interrupt the current after a set time.
Automatic parking mode
Because this Vantrue power supply is connected to two different power points (one constant and one switched), the dashcam senses when the car ignition is turned on and off. As a result, it automatically goes into parking mode when the car's ignition is turned off and starts regular recording again when the car is started.
Installation
View detailed instructions on how to install this hardwire kit on this page.
Four types of Add-a-fuse plugs included
Connecting the power supply is made even easier as 4 type add-a-fuse plugs are included for both cables (red and yellow). This way, only the fuse needs to be replaced for one of these plugs. This is a lot safer than having to plug wires into an existing fuse.
Specifications
Length: 3.5m
Plug: USB-C
Input: 12V/24V
Output: 4.7V 1.5A
Battery protection: 11.8V-12.4V
Type: 3-wire
