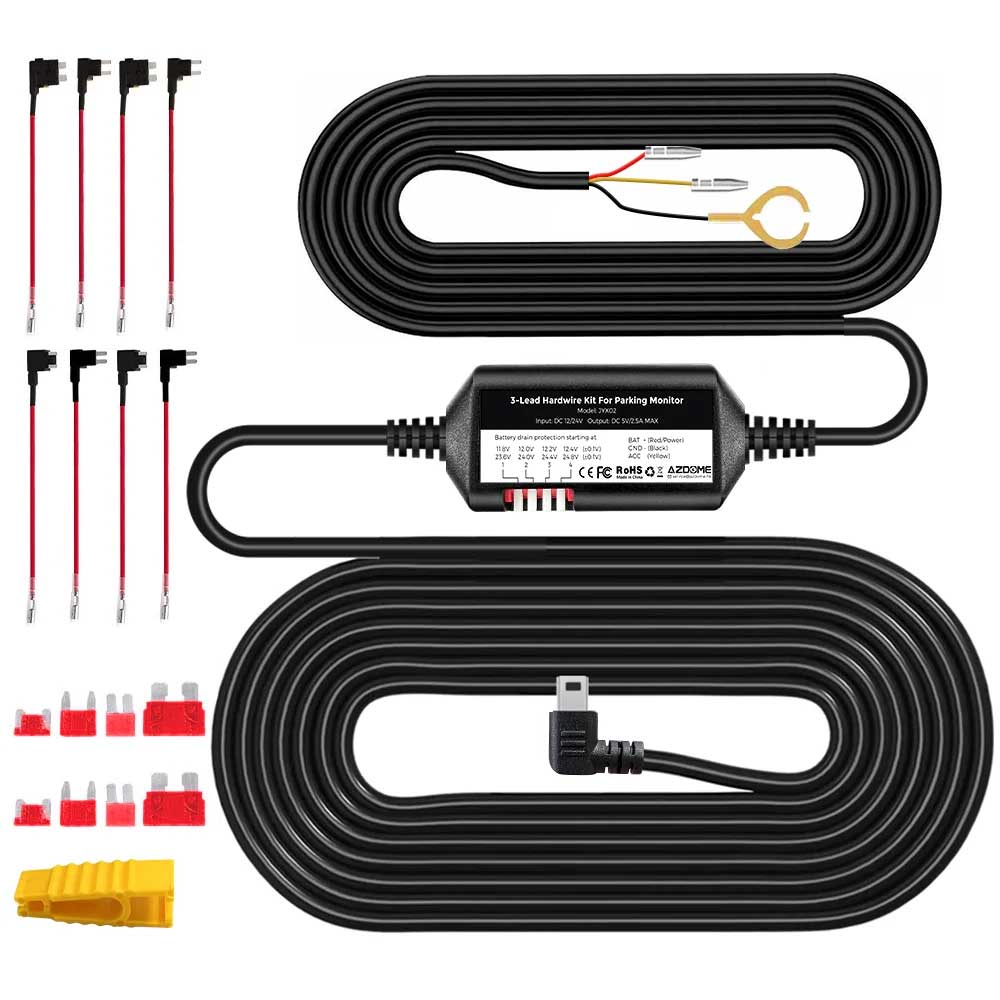

AZDome JYX04 Micro USB permanent power supply to permanently power your AZDome with Micro USB plug and use parking mode. Suitable for all AZDome dashcams with Micro USB plug such as BN03.
Note: This cable is only suitable for AZDome dashcams, parking mode will not work on other type of dashcams with this power supply.
3-wire
This AZDome power supply is a 3-wire ‘hardwire kit’ that connects to three points, preferably at the car's fuse box. The red wire is connected to a fuse that provides continuous current (also when the ignition is switched off), the yellow to a switched fuse (which only provides current when the ignition is switched on) and the black to earth. In this way, the power supply sends a signal to the dashcam when the ignition is turned on and off so that the dashcam will automatically switch to parking mode.
Variable battery protection
The power supply has a built-in module with a switch that ensures that the car's battery will not be drained by filming with the dashcam. The switch can be set to 11.8V/23.6V, 12.0V/24.0V, 12.2V/24.4V or 12.4V/24.8V. Power is cut off when the battery voltage falls below the set threshold.
Automatic parking mode
Because this JYX04 power supply is connected to two different power points (one constant and one switched), the dashcam senses when the car ignition is turned on and off. As a result, it automatically goes into parking mode when the car's ignition is turned off and starts regular recording again when the car is started.
Installation
View detailed instructions on how to install this hardwire kit on this page.
Four types of Add-a-fuse plugs included
Connecting the power supply is made even easier as 4 types of add-a-fuse plugs are included. This way, only the fuse needs to be replaced for one of these plugs. This is a lot safer than having to plug wires into an existing fuse.
Specifications
Length: 3 metres
Plug: Micro USB
Input: 12V/24V
Output: 4.7V 2.5A
Battery protection: adjustable 11.8V to 12.4V
Type: 3-wire
