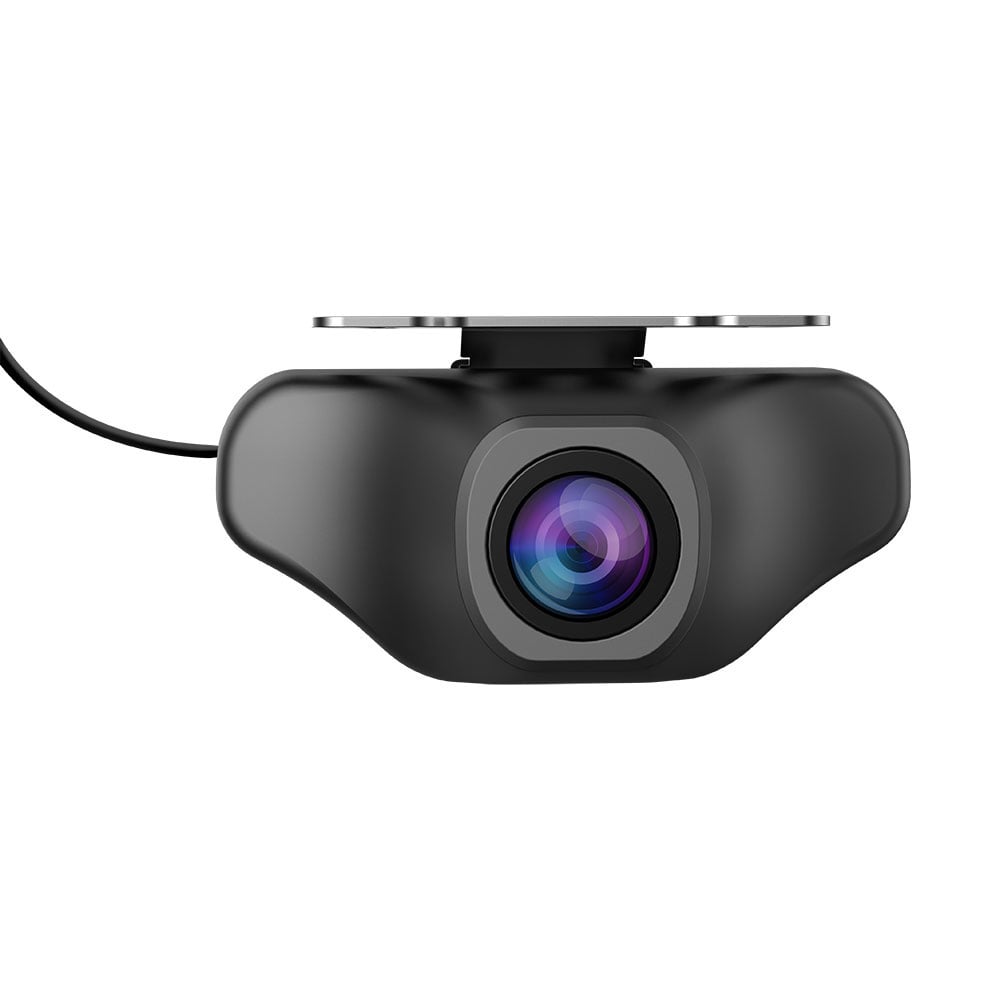

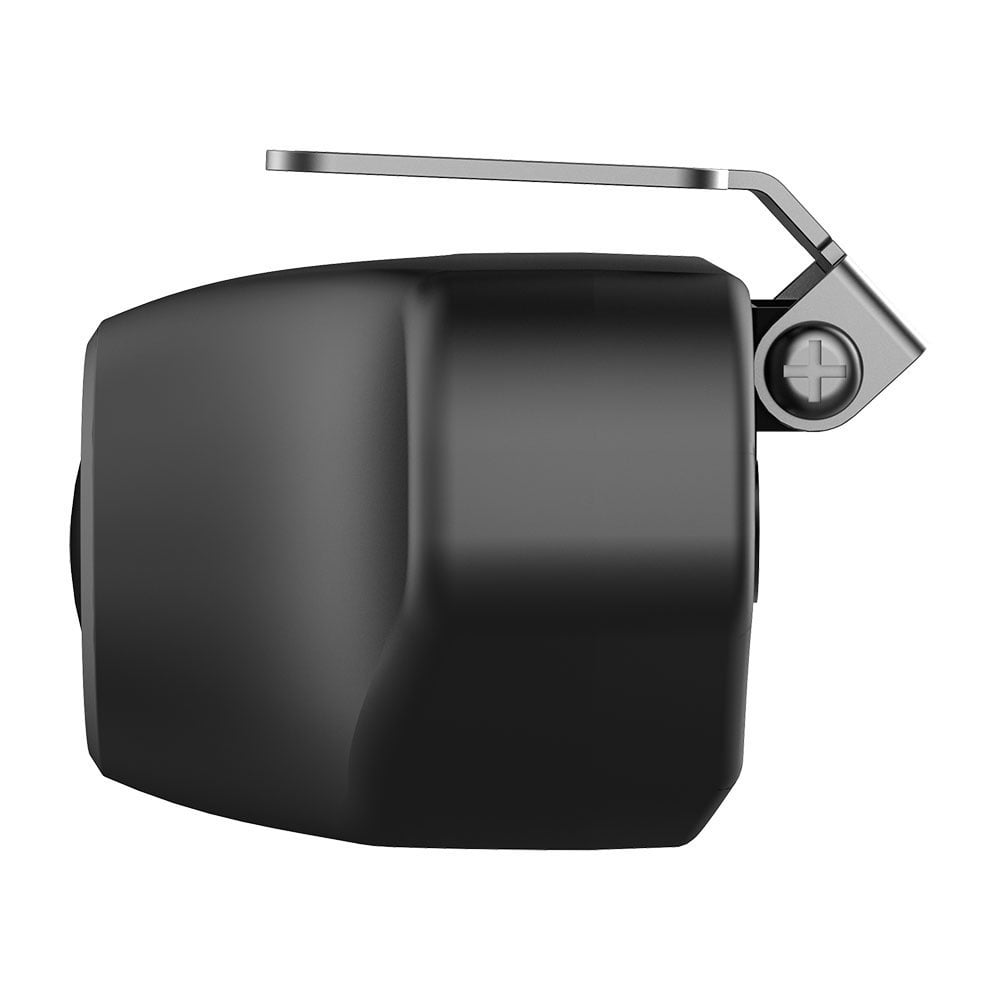

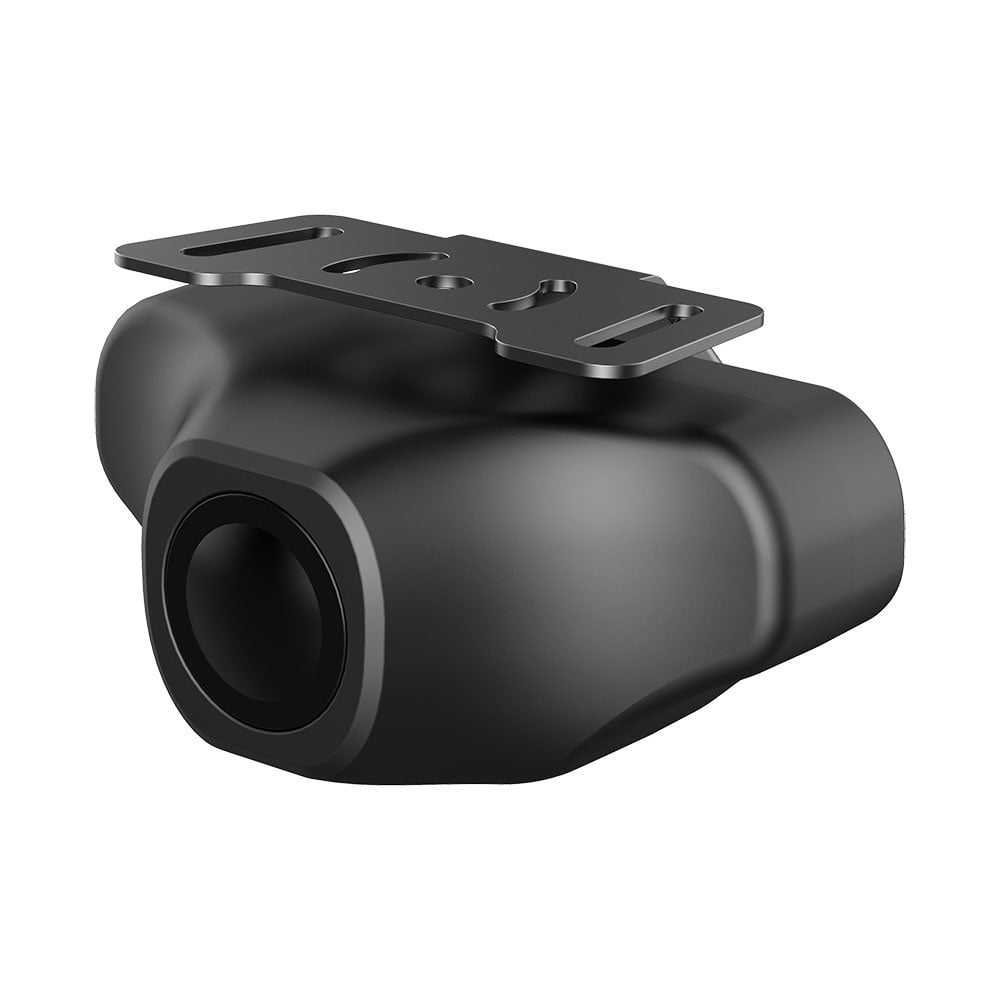

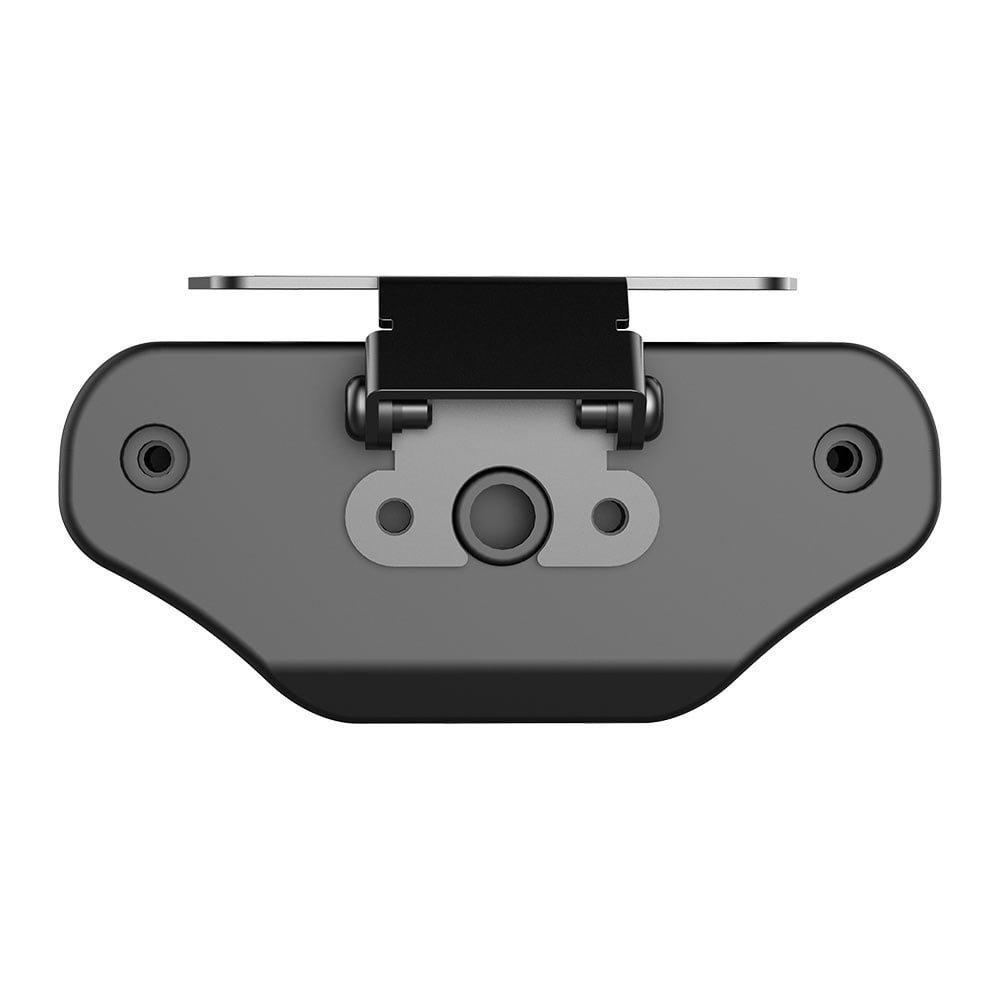

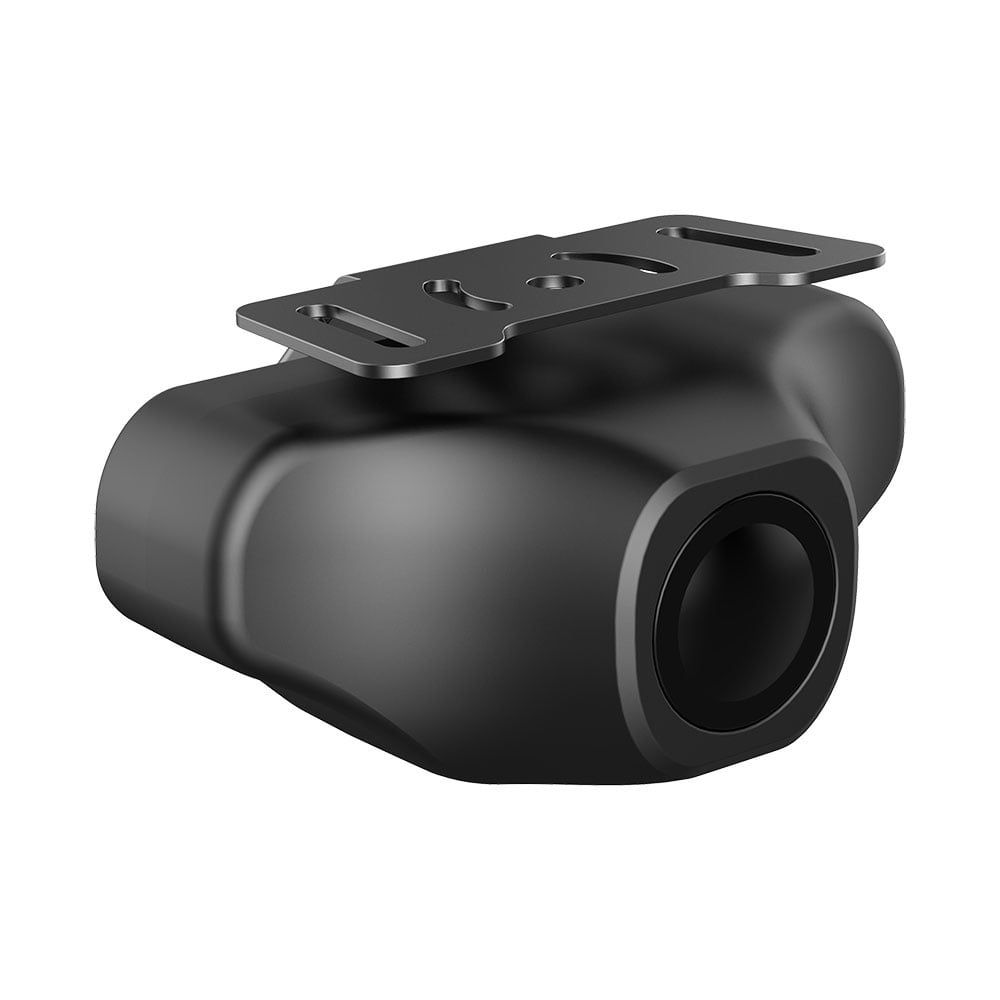

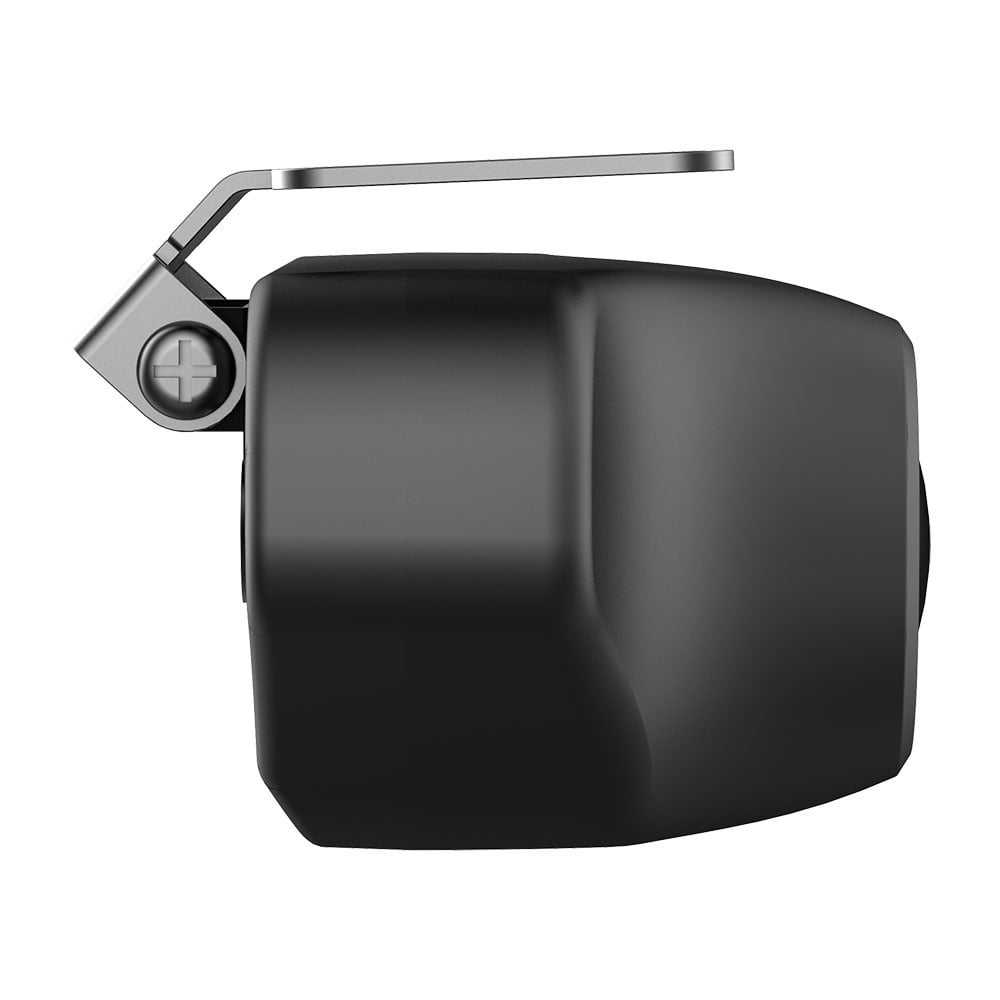

The AZDome FullHD rear camera is the (optional) waterproof rear camera for the AZDome M10 Pro, M63 Pro, AR08 and M06P, among others.
Dimensions: 5.3*2.3*3.0 cm
Note: This rear camera is only suitable for AZDome dashcams that support a FullHD rear camera. It does not fit AZDome dashcams with 720p or VGA rear camera such as the PG02 or GS63H, nor any other brand's dashcams.
FullHD 30fps recording
Equipped with the reliable and powerful GalaxyCore 2053 image sensor, this rear cam records in razor-sharp image quality. The camera is IP68 waterproof, so it can be mounted on both the bumper and the rear window. It comes with one and a set of screws so it can be easily and securely installed. It has a viewing angle of 140 degrees.
Easy installation

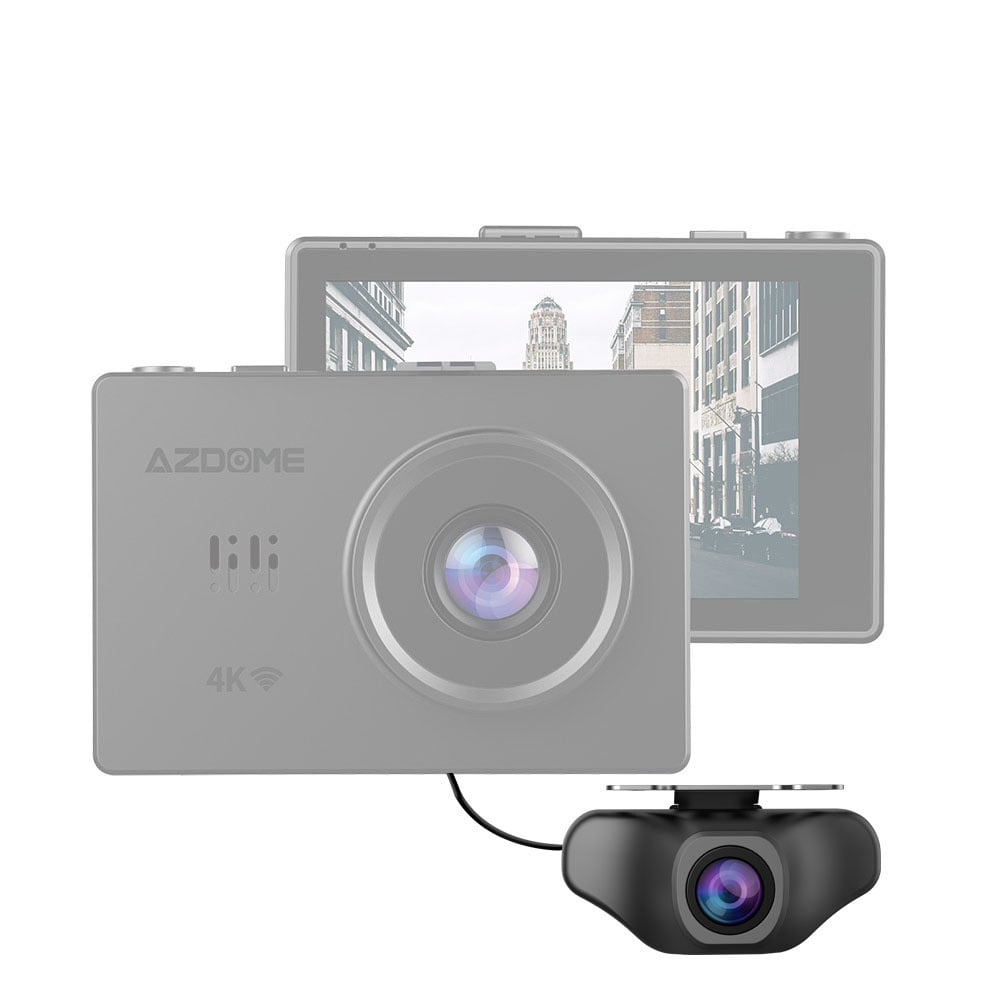

The rear camera is connected to the front camera via a supplied 6-metre cable. The cameras record simultaneously and the images are stored separately on the SD card. The rear camera's image is displayed on the LCD screen via PiP (Picture in Picture), and with one touch of the screen, the rear camera can also be displayed large in picture.
Parking assistance
No separate power supply is required for the AZDome FullHD rear camera, the camera is powered via the same cable it is connected to the front camera with. However, a separate connector is provided that can be connected to the power supply of the reversing light. In that case, the rear camera image will be displayed in full on the LCD screen when the car is put into reverse gear.
